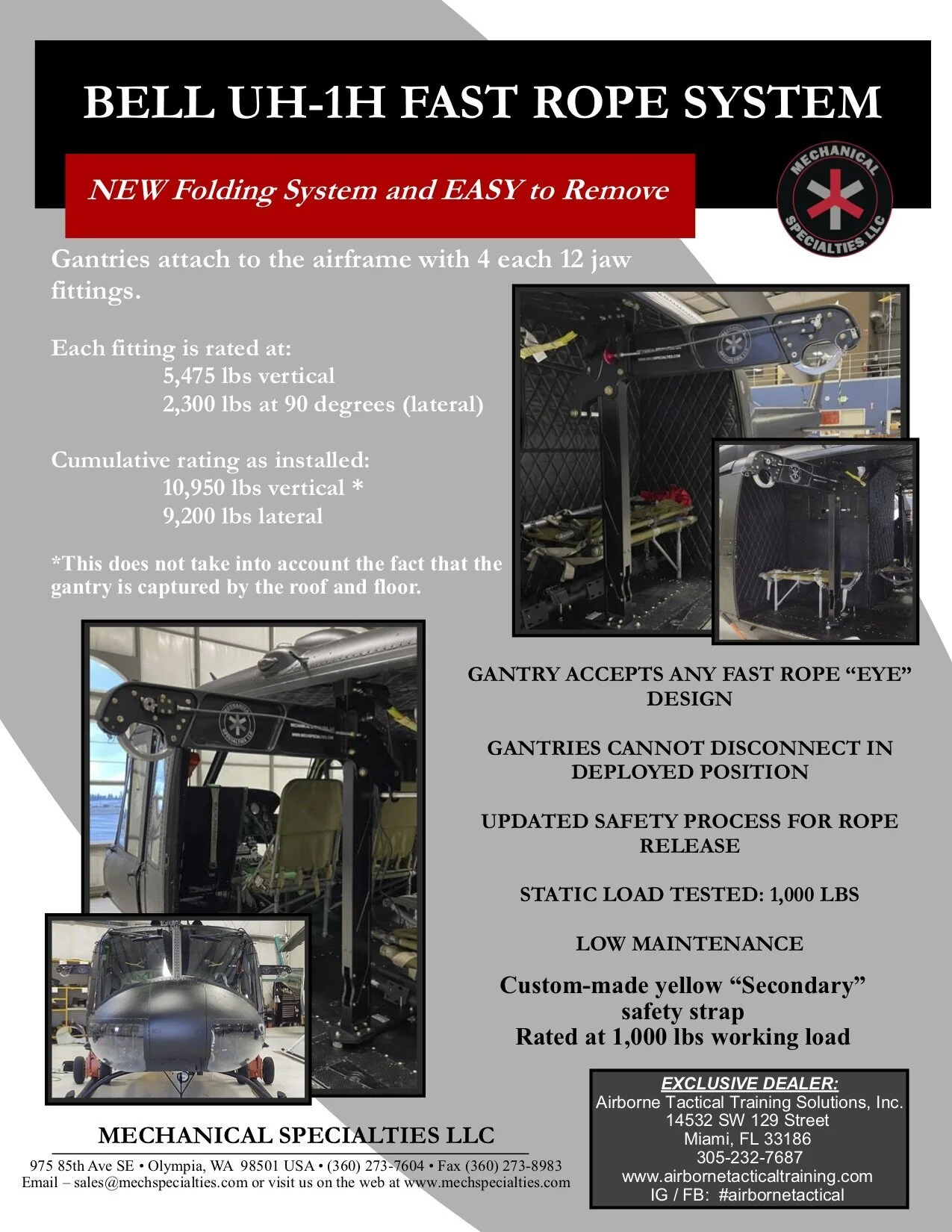

We are proud to announce the “NEW” Bell UH-1H Fast Rope (FRIES ) Gantry System manufactured by Mechanical Specialties LLC. available exclusively through ATTS.  This new design is the first “Inflight” stow-able & deployable system that allows both side doors to be fully closed while en-route to target site. The gantry accepts any fast rope “eye” design, and incorporates a new double safety process for rope release. This is the ideal “FRIES” system for any agency looking for a better, safer and more versatile rapid deployment option with the UH-1H platform.  ATTS offers training, service and support at a discounted rate with any purchase of this new system.

Complete Kit (LH & RH) Gantry systems =  $49,500.00

Specifications:

Each fitting is rated at: 5,475lbs Vertical, 2,300lbs at 90 degrees (lateral). The cumulative rating as installed is 10,950lbs Vertical* and 9,200lbs lateral. (*This does not take into account the fact that the gantry is captured by the roof and floor.) Static Load tested: 1,000lbs. Custom-designed yellow “secondary” safety strap rated at 1,000 lbs working load.
